Undermount Photos
Undermount Epoxy Sinks
Epoxy sinks - a natural complement to Trespa TopLab Plus solid phenolic countertops and worksurfaces. Epoxy resin sinks are chemical and heat resistant, anti-microbial and do not promote the growth of bacteria. Under mount epoxy sinks require sink supports to support the weight of the sink wheras lipped drop-in epoxy sinks are applied into a recessed rabetted cutout at the countertop surface and seamed with epoxy resin adhesive to create a chemical liquid seal. ADA compliant epoxy resin sinks are also available to meet the needs of handi-capped areas of the laboratory environment.
Duratop epoxy sinks are available in over 14 colors to match or contrast with Trespa TopLab Plus chemical resistant countertops, making the laboratory components an ideal combination of solid phenolic and epoxy resin chemical resistant products.
MODEL NUMBER |
LENGTH |
WIDTH |
DEPTH |
DRAIN |
WEIGHT |
DER-L-30CR-2X* |
39.06" OD |
16.53" OD |
10.75" ID |
Corner |
110 LBS. |
Double Bowl Under Mount |
97.65 cm |
41.33 cm |
4.3 cm |
||
DER-U-03C |
12" ID |
8" ID |
6" ID |
Ctr |
17 Lbs. |
30 cm |
20 cm |
15 cm |
|||
DER-U-04C |
12" ID |
6" ID |
7" ID |
Ctr |
18 |
30 cm |
15 cm |
17.5 cm |
|||
DER-U-05C |
14" ID |
10" ID |
6" ID |
Ctr |
22 |
35 cm |
25 cm |
15 cm |
|||
DER-U-08C |
12" ID |
12" ID |
8" ID |
Ctr |
25 |
30 cm |
30 cm |
20 cm |
|||
DER-U-10C or E |
16" ID |
8" ID |
7" ID |
Ctr or End |
22 |
40 cm |
20 cm |
17.5 cm |
|||
DER-U-02 or U-12 |
DISCONTINUED |
||||
DER-U-15C or E |
16" ID |
12" ID |
8" ID |
Ctr or End |
34 |
40 cm |
30 cm |
20 cm |
|||
DER-U-20CR |
16" ID |
16" ID |
7 1/2" ID |
Cor |
39 |
40 cm |
40 cm |
18.75 cm |
|||
DER-U-22C |
18" ID |
6 1/2" ID |
6" ID |
Ctr |
22 |
45 cm |
16.25 cm |
15 cm |
|||
DER-U-23C |
16" ID |
16" ID |
12" ID |
Ctr |
54 |
40 cm |
40 cm |
30 cm |
|||
DER-U-24C |
18" ID |
14" ID |
10 1/2" ID |
Ctr |
38 |
45 cm |
35 cm |
26.25 cm |
|||
DER-U-25CR |
18" ID |
15" ID |
8" ID |
Cor |
40 |
45 cm |
37.5 cm |
20 cm |
|||
DER-U-30C or CR |
18" ID |
15" ID |
11" ID |
Ctr or Cor |
49 |
45 cm |
37.5 cm |
27.5 cm |
|||
DER-U-33E |
21" ID |
17" ID |
10" ID |
End |
64 |
52.5 cm |
42.5 cm |
25 cm |
|||
DER-U-35E |
21" ID |
18" ID |
10" ID |
End |
65 |
52.5 cm |
45 cm |
25 cm |
|||
DER-U-40CR |
21.3" ID |
15.5" ID |
7" ID |
Cor |
47 |
53.25 cm |
38.75 cm |
17.5 cm |
|||
DER-U-45CR |
21.5" ID |
15.5" ID |
11" ID |
Cor |
64 |
53.75 cm |
38.75 cm |
27.5 cm |
|||
DER-U-49CR |
22" ID |
14.5" ID |
10.6" ID |
Cor |
68 |
55 cm |
36.25 cm |
26.5 cm |
|||
DER-U-50C |
24" ID |
16" ID |
8" ID |
Ctr |
54 |
60 cm |
40 cm |
20 cm |
|||
DER-U-51E |
24" ID |
16" ID |
10" ID |
End |
59 |
60 cm |
40 cm |
30 cm |
|||
DER-U-52E |
24" ID |
18" ID |
10.8" ID |
End |
77 |
60 cm |
45 cm |
27 cm |
|||
DER-U-53E |
24.4" ID |
18.4" ID |
16.8" ID |
End |
85 |
61 cm |
46 cm |
42 cm |
|||
DER-U-54CR |
23" ID |
21" ID |
19.1" ID |
Cor |
95 |
57.5 cm |
52.5 cm |
47.75 cm |
|||
DER-U-55CR |
25" ID |
15" ID |
10" ID |
Cor |
60 |
62.5 cm |
37.5 cm |
25 cm |
|||
DER-U-56C |
24" ID |
16" ID |
12" ID |
Ctr |
76 |
60 cm |
40 cm |
30 cm |
|||
DER-U-58E |
27.8" ID |
14.8" ID |
8" ID |
End |
56 |
74.38 cm |
36.88 cm |
15 cm |
|||
DER-U-59E |
28" ID |
15" ID |
12" ID |
End |
65 |
70 cm |
37.5 cm |
30 cm |
|||
DER-U-60E |
28" ID |
20" ID |
8.8" ID |
End |
83 |
70 cm |
50 cm |
21.88 cm |
|||
DER-U-62C |
DISCONTINUED |
||||
DER-U-63E |
31" ID |
17" ID |
10"ID |
End |
75 |
77.5 cm |
42.5 cm |
25 cm |
|||
DER-U-64C |
DISCONTINUED |
||||
DER-U-65C |
35.5" ID |
19.6" ID |
10" ID |
Ctr |
100 |
88.75 cm |
49 cm |
25 cm |
|||
DER-U-67C |
DISCONTINUED |
||||
DER-U-66C |
35.7" ID |
19.7" ID |
12" ID |
Ctr |
110 |
89.25 cm |
49.25 cm |
30 cm |
|||
DER-U-70C DISCONTINUED |
24" ID |
16" ID |
15 1/2" ID |
Ctr |
88 |
| SEE DER-L-70C as replacement | 60 cm |
40 cm |
38.75 cm |
||
DER-U-71C |
43" ID |
15" ID |
11" ID |
Ctr |
108 |
107.5 cm |
37.5 cm |
27.5 cm |
|||
DER-U-72C |
43.3" ID |
15.3" ID |
16" ID |
Ctr |
179 |
108.25 cm |
38.25 cm |
40 cm |
|||
DER-U-73CR |
38" ID |
21" ID |
19" ID |
Cor |
150 |
95 cm |
52.5 cm |
47.5 cm |
|||
DER-U-74C |
30" ID |
18" ID |
18" ID |
Ctr |
140 |
75 cm |
45 cm |
45 cm |
|||
DER-U-75C |
42" ID |
20" ID |
10" ID |
Ctr |
126 |
105 cm |
50 cm |
25 cm |
|||
DER-U-77C |
DISCONTINUED |
||||
DER-U-81E |
48.8" ID |
24.6" ID |
5.6" ID |
End |
100 |
122 cm |
61.5 cm |
14 cm |
|||

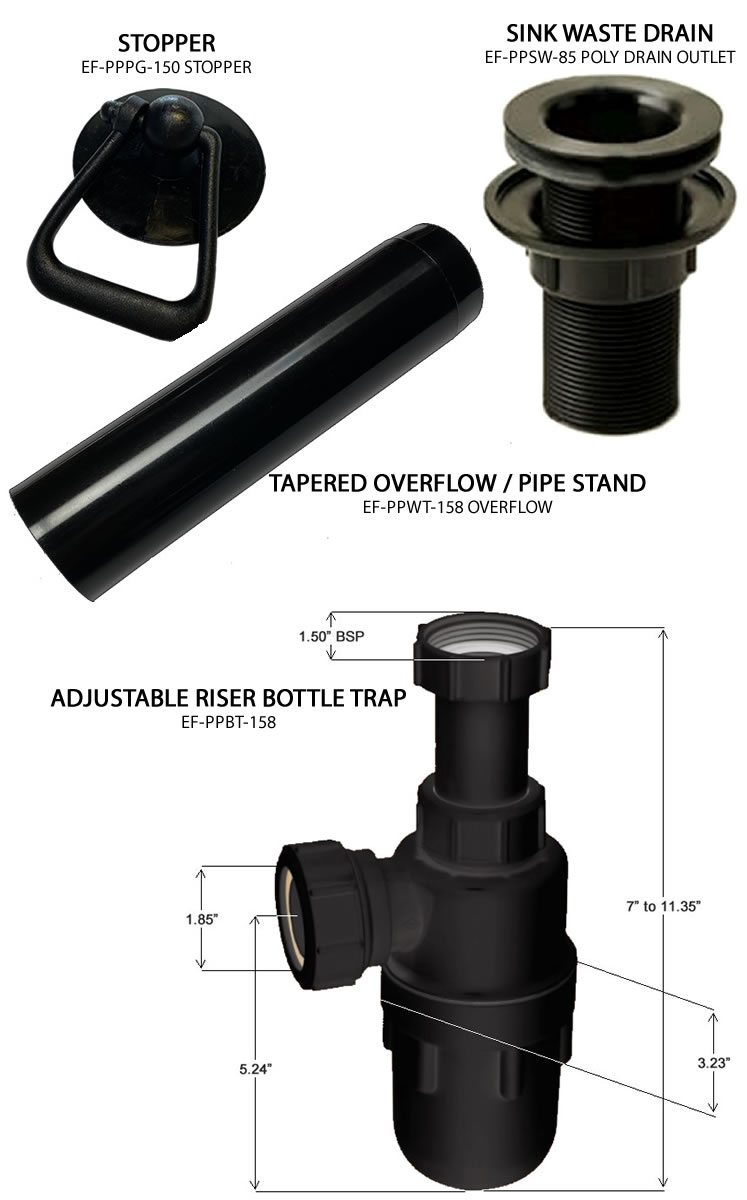

All Duratop Epoxy Resin sinks require accessory sets of the following:
EF-PPSW-85 POLY DRAIN OUTLET 3.25" Flange x 4" Height x 1.5" Diam Thread
EF-PPWT-158 OVERFLOW - 1.5" Tapered OD x 6" Length
EF-PPPG-150 STOPPER - 1.5" Diameter
EF-PPBT-158 Adjustable Riser Bottle Trap - 1.75" ID x 2.00" OD x 7.5" Height -
Not required, but available for individual purchase. Contact us for details.
 |
DURATOP EPOXY SPECIAL ORDER END & WALL SINKS UNDER COUNTER MOUNT HEXAGONAL AND ROUND SINKS |
||||||
MODEL NUMBER |
LENGTH |
WIDTH |
DEPTH |
SPLASH HEIGHT |
DRAIN |
WEIGHT |
DER-E46 WALL MOUNT |
22.00" ID |
13.60" ID |
12.60" ID |
3.80" |
FRONT DRAIN |
70 LBS. |
55.00 cm |
34.00 cm |
31.50 cm |
9.50 cm |
|||
DER-E47 WALL MOUNT |
22.00" ID |
13.60" ID |
12.60" ID |
5.8" |
FRONT DRAIN |
73 LBS. |
55.00 cm |
34.00 cm |
31.50 cm |
14.5 cm |
|||
DER-08C WALL MOUNT |
14.60" ID |
14.60" ID |
11.80" ID |
4.30" |
CENTER |
46 LBS. |
36.50 cm |
36.50 cm |
29.50 cm |
10.75 cm |
|||
DER-20C HEXAGON |
30.00" ID |
HEXAGONAL |
6.90" ID |
N/A |
CENTER |
82 LBS. |
75.00 cm |
75.00 cm |
17.25 cm |
||||
DER-RS-10C ROUND |
19.50" ID |
19.50" ID |
8.50" ID |
N/A |
CENTER |
37 LBS. |
48.75 cm |
48.75 cm |
21.25 cm |
||||
DER-RS-05C ROUND |
11.90" ID |
11.90" ID |
7.50" ID |
N/A |
CENTER |
21 LBS. |
29.75 cm |
29.75 cm |
18.75 cm |
||||
